Type: 860.040, 861.040-L2 (L4)

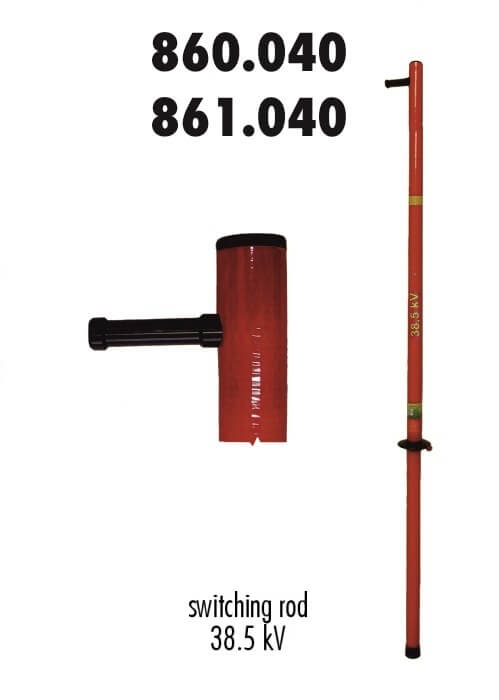

Switching rods are designed for switch off-point, switch over-point and earthing point control at distribution transformer stations with the nominal network voltage of up to 35 kV. They consist of terminal case with the switch off-point (plastic), insulating part, handle guard and handle. Insulating rod is made of glass -fabric laminate which is suitable for its high electrical and mechanical resistance and stability. Switching rods are determined for indoor use under normal climatic conditions. The handle is provided with the protecting ring (hand guard). Switching rods comply standards ČSN 35 9701, IEC 832.
Type 861.040 is delivered in two models with various length of pole (L2, L4). Insulating part of 861.040-L4 consists of two pieces connected by means of connecting element.
Documentation 860.040-861.040EN – download
……………………………………….860.040…………861.040-L2……….861.040-L4
Length of pole: 1 000 mm 2 000 mm 4 000 mm
Length of handle: 300 mm 500 mm 1 200 mm
Weight of equipment: 0.5 kg 0.7 kg 1.6 kg
Pole diameter: 31 mm
Mechanical firmness: 500 N/1 min
Pole material: glass-fabric laminate for outdoor use
Climatic group: normal -25°C to +55°C
